HIQUPHON
OW I

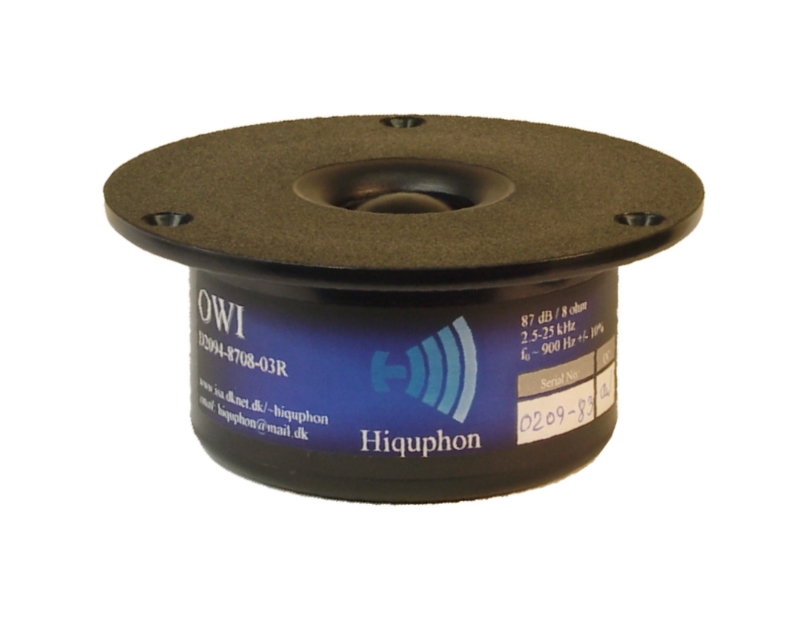

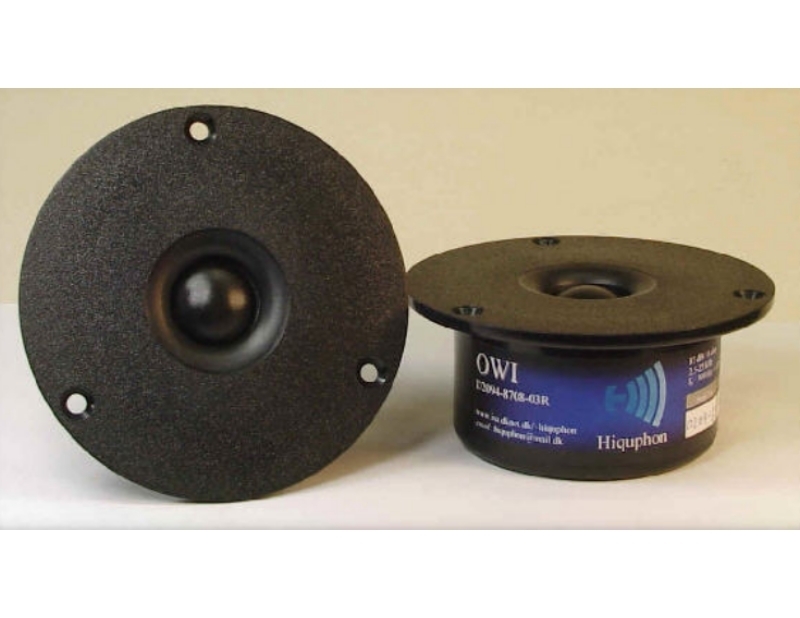

20 mm Textile Dome Tweeter

- Excellent frequency linearity 2 - 20 kHz +/- 1 dB typical
- Excellent phase linearity
- Smooth roll-off at high frequencies
- Low and well controlled resonance frequency
- Well controlled damped low frequency response, soft raising
- Very broad-banded (2.0 kHz to 27 kHz)
- Fast transient response
- Very low distortion
- A-periodic damped moving system
- Exponential phase-correction horn-loaded
- Saturated magnet gap for low magnetic distortion
- Perfect sealed housing
- Heavy duty connectors for 2.5 mm2 lead wire
- Excellent, mechanical robust, non-vibrating, soldering contact
- Shock absorbing construction
- Beautiful sound capabilities



Matched pairs From Denmak



Price: HKD 2900.00 / pair 對

View All HIQUPHON Products

Sensitivity (2.83V/1M) : 87dB

Nominal Impadance : 8 ohm

Resonance frequency [fs] : 850 Hz

Nominal power handling RMS : 100W (w/-12dB oct crossover)

Gross weight : 0.36 kg

DOCUMENT DOWNLOAD
OWI-spec
