NOTE :

• This product is suitable for diameter 12 mm circular opening gap of the panel.
• This product is suitable for the maximum 3.5 mm thickness of the panel.
• The torque for the nut on this product can be reach to maximum 8 (lb-in)
• Please noted, it will cause component damage if force to lock tighten too much.

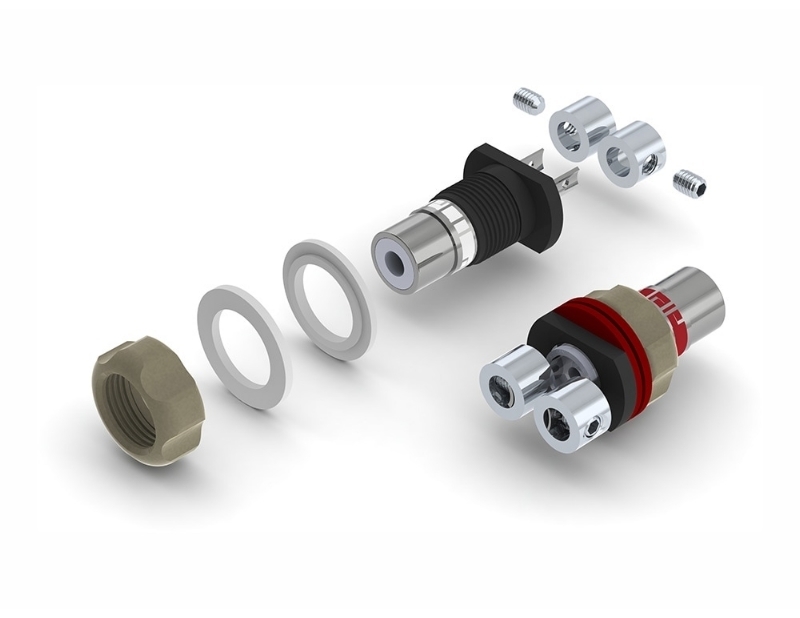

Material :
Contact Pin: Copper (#C1100 / copper contains over 99.5%)
Grounding: Tellurium Copper (#C14500 / copper contains over 99%)
Insulator: PTEF (White)
Shell: POM (Black)
Washer: PE(White / Red)
Nut: Brass alloy (#C3604)
Ring: Brass alloy (#C3604)
Screw: Brass alloy (#C3604)

Finish :
ARJ-4045G
Contact Pin: 10u" Gold plating (no nickel base)
Grounding: 10u" Gold plating (no nickel base)
Ring:  3u" Gold plating (no nickel base)
Screw: 3u" Gold plating (no nickel base)

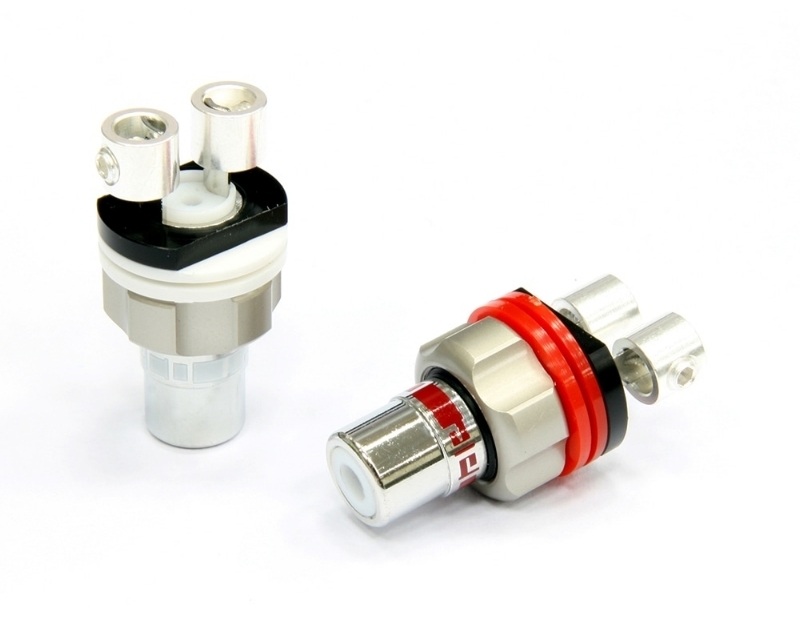

ARJ-4045R
Contact Pin: Rhodium plating (no nickel base)
Grounding: Rhodium plating (no nickel base)
Ring:  120u" Silver plating (no nickel base)
Screw: 120u" Silver plating (no nickel base)

ARJ-4045S
Contact Pin: 120u" Silver plating (no nickel base)
Grounding: 120u" Silver plating (no nickel base)​
​Ring:  120u" Silver plating (no nickel base)
Screw: 120u" Silver plating (no nickel base)

Insulator: None
Shell: None
Washer: None
Nut: Satin Nickel + Topcoat

Electrical Characteristics :
Contact resistance < 0.3 mOhm (It was test by ARP-4045.)

Dimension :
Biggest OD 15.0mm
Total Length 29.0mm

Packing :
Vacuum Bag(2Pcs/1Set)
​
Recommend soldering temperature :
Temperature Soldering Iron, please keep 380 degree within 5~8 second.
Temperature Soldering Iron, please keep 360 degree within 9~13 second.
Temperature Soldering Iron, please keep 340 degree within 13~18 second.
Temperature Soldering Iron, please keep 320 degree within 19~25 second.

Product production process comply with RoHS.
