SCAN-SPEAK

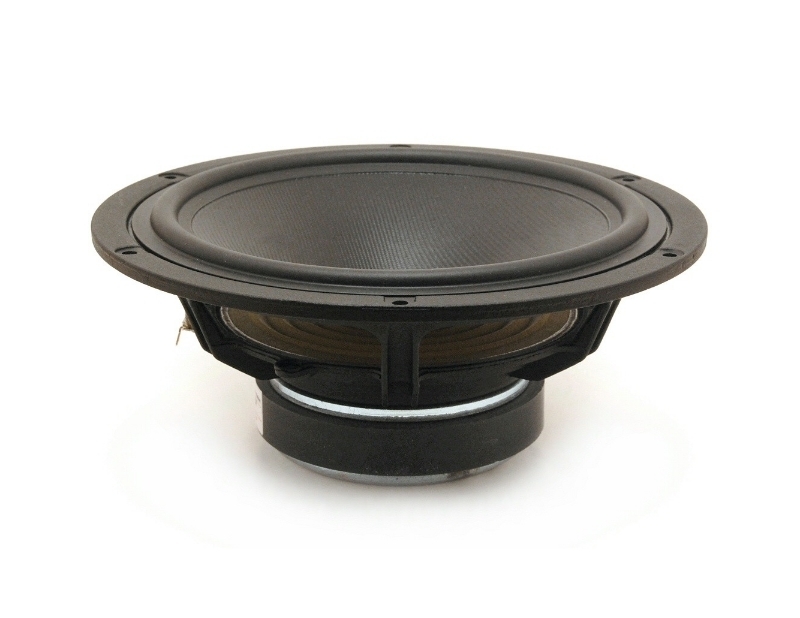

8" - 22W/8534G00
DISCOVERY
8" Coated Fiberglass Cone Woofer
- High Output 89dB @ 2,83V
- Coated NRSC Fibre Glass Cone
- Low Damping SBR Rubber Surround
- Low Resonance Freq. 30Hz
- Magnet System w. Alu Ring
- Die cast Alu Chassis vented below spider
Price: HKD 1380.00 / pc
Sensitivity (2.83V/1M) : 88.8dB
Nominal Impadance [Z] : 8 ohm
DC Resistance [Re] : 5.9 ohm
Frequency response : See graph
Resonance frequency [fs] : 30 Hz
Mechanical Q Factor [Qms] : 4.14
Electrical Q Factor [Qes] : 0.43
Total Q Factor [Qts] : 0.39
Eq. Cas Air Load [VAS] : 94.2 Lt
Effective Piston Area [SD] : 235 cm ²
Nominal power handling RMS : 70W
Magnet type : Ferrite
Net weight : 2.1 kg
DOCUMENT DOWNLOAD
22W-8534G00-Datasheet
