PRELIMINARY PARAMETERS :

PHISICAL
Weight : 48kg(net) / 80 kg (gross) / With palet: 95 kg
Dimensions (mm) : body W430 x H220 x D500
Height with biggest tubes (mm): 340

Footer rectangle footprint (mm) : 400 x 450

Signal parameters

PCM compatibility range: 32 kHz - 768 kHz - every frequency/ every bit depth 16 bit - 32 bit
DSD signals: 64x to 512x, autosensing, all native playback

Electrical - power

Voltage range: 115V and 230 V user selectable. 240V included, +/- 5%
Current consumption on idl / on standby/Power:
0,8A (USA 1,6 A). / 0,01 A (USA 0,02. A) / on normal use 190 W
Fuse: for USA/115V 5A Slow 20mm type glass (T5A). Fuse for 230/240V:
glass (T3,15A) for 230 and 240 V countries
3,15A Slow 20mm type

Electrical - music

Signal output at -20dB/0dB (PCM): 0,3 V pp. 3V pp
Output impedance: 600 Ohms
Muting action: -62 dB
Minimum recommended load impedance: 10k Ohm (per phase when balanced) optimal 47k Ohm upwards
Frequency response analog section: 0,5 Hz - 200 kHz
Frequency response digital section: 20 Hz to 1/2 Fs (21kHz minimum)

TUBES

Rectifiers (two): 5U4G x 2 (5Y3, 5R4, 5C3S, GZ34, GZ37, 274B)
Active anode load (four): KT88 (KT66, 6L6, 6V6, EL34, kt77, KT99, kt120, kt150, KT170, 5881, 6J5, 6C2C, 6550)
Amplification and conversion analog stage (four): KT88 (KT66, 6L6, 6V6, EL34, kt77, KT99, kt120, kt150, KT170, 5881, 6J5, 6C2C, 6550)

Tube parameters
Rectifier: Heater 5V 3A, voltage minimum AC350-0-350 V @100mA (minimum)
Active anode load: Heater max 2A 6,3V, anode 300V DC @ 50mA
Amplification and conversion analog stage: Heater max 2A 6,3V, anode 150V DC @ 50mA

Colors
Body: Matt Black (alternatively with artistic engraving - patterns)
Top masking plate: real copper, black copper with engraving, matt black, fake copper coating

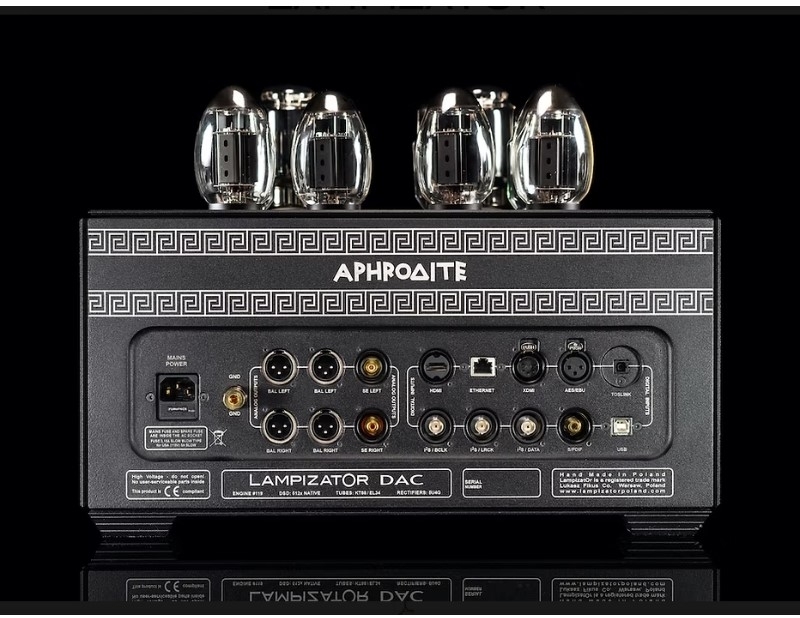

Inputs:

S/PDIF coax: RCA connector, 0,5V PP square, from 32 kHz to 192 kHz / 24 bit
TOSLINK (optical): TOS178 connector, 5V PP square, from 32 kHz to 96 kHz / 24 bit
AES/EBU: XLR female 3 pin connector, 2 V PP square, from 32 kHz to 192 kHz / 24 bit
HDMI (i2S): i2s standard PS-AUDIO
USB: Type B- USB2.0 audio port with reclocking and optoisolation
XDMI (taiko olympus): Taiko link for Olympus (or other XDMI ready Taiko servers) with 5-pin female XLR port.
3xBNC (i2S): Universal i2S super link (without the need of a Masterclock) 3 x BNC
LAN/Ethernet RJ45: Standard LAN port with internal PC computer running on Linux. Preinstalled LOGITECH SLIMDEVICES SQUEEZE end point playback software.

OUTPUTS
RCA pair: Stereo pair with 0,6k Output impedance and noninverting phase.
XLR two pairs identical and connected: Stereo pair with 0,6k Output impedance per phase and noninverting absolute phase.
Grounding lug : Chassis ground with a connection to the AC cable ground and 60 Ohms to the analog signal ground.

REMOTE

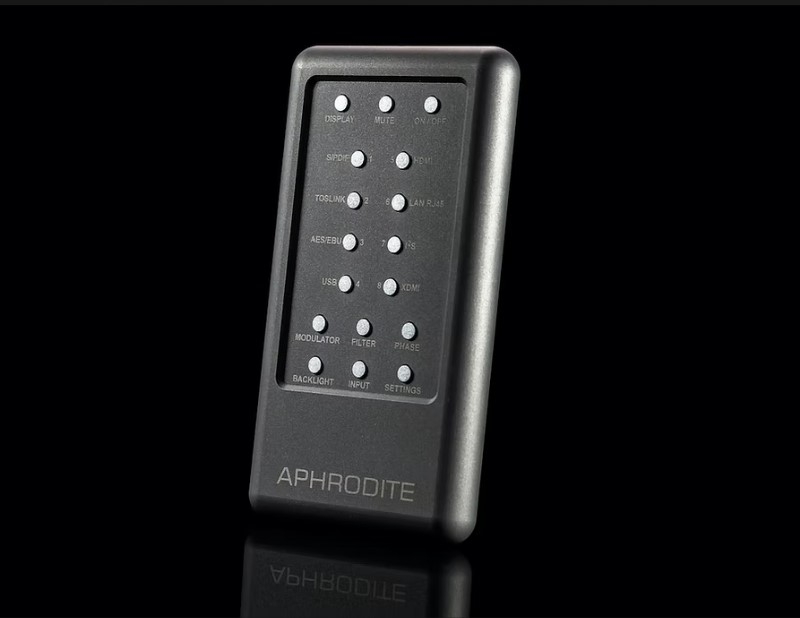

Remote control unit: Handheld IR remote, aluminium CNC body, 2x AA batteries, distance 6m.
