TECHNICAL HIGHLIGHTS
- The conductor is made from high- purity copper (Tellurium Copper) with Gold-plating (no nickel base)
- Conductor with non-coaxial conduction is able to use single point conduction .

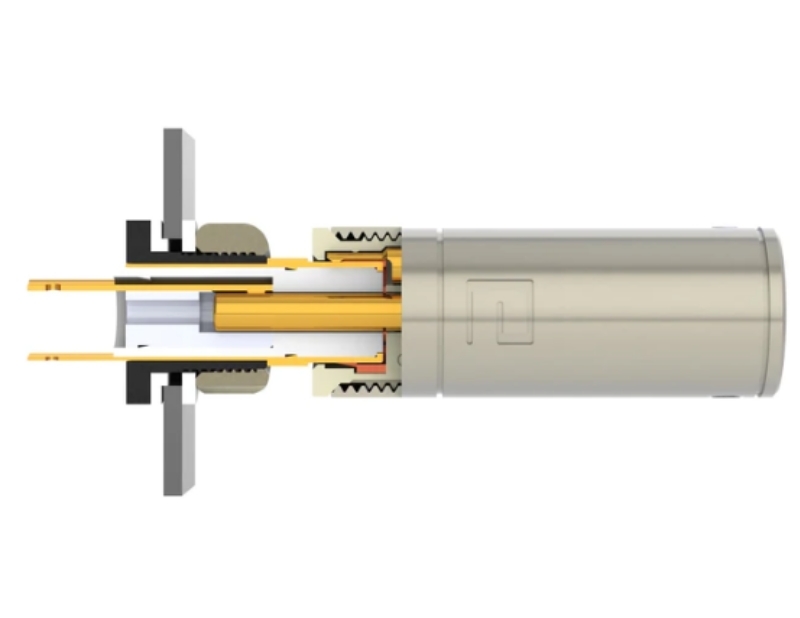

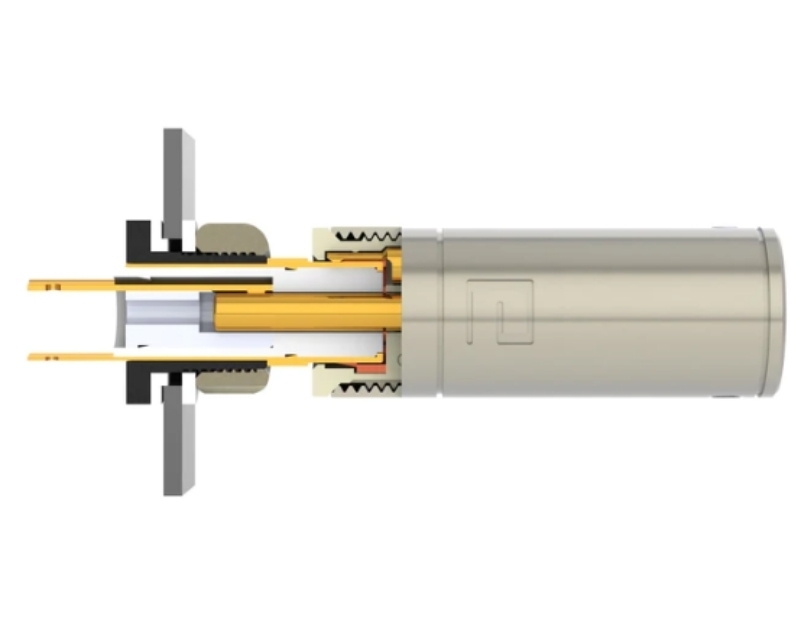

- Body set with structure of detachable welded design.
- C ring strengthens bond with plug and jack.

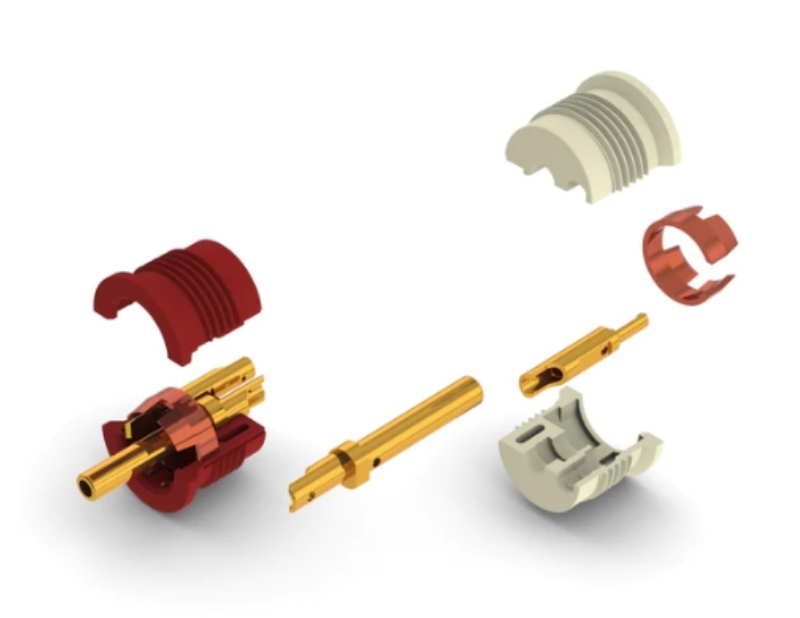

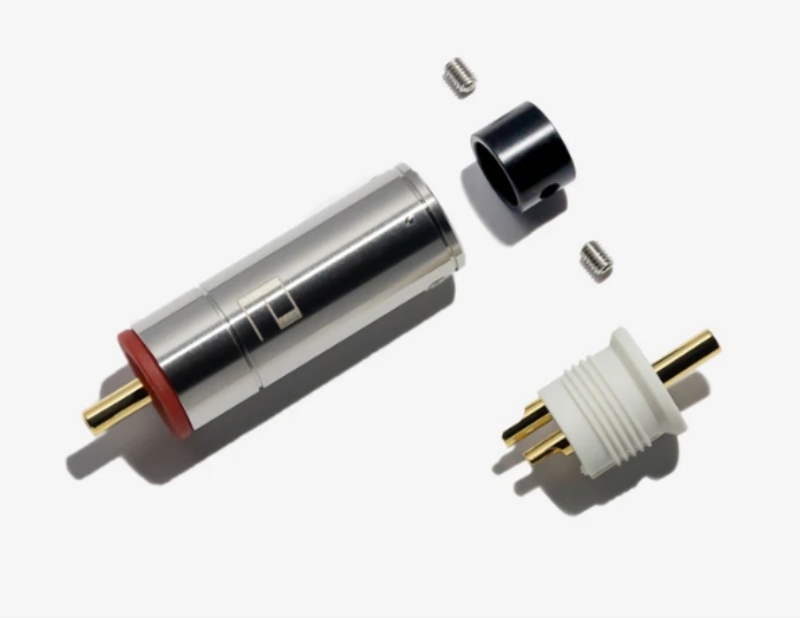

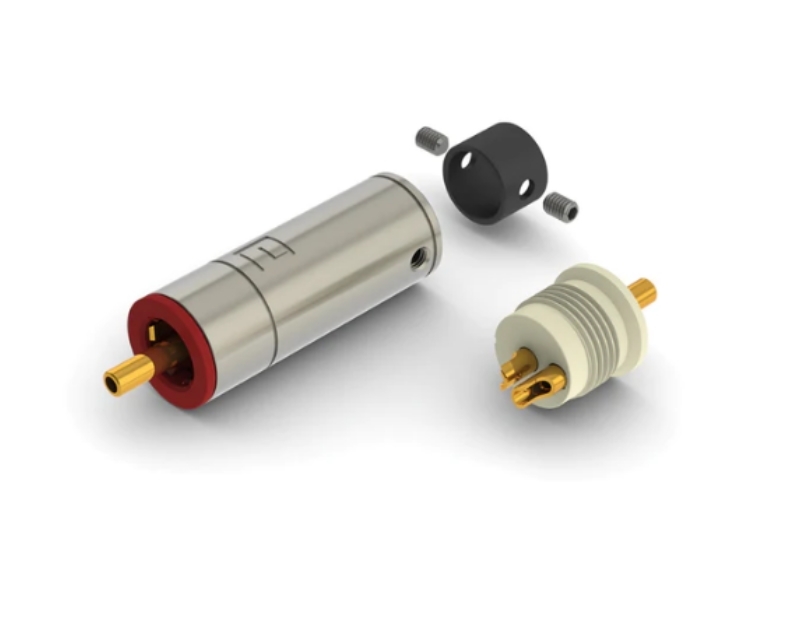

- Disassembles into individual parts for recycling.
- 導體非同軸單點接觸
- 本體組採可拆卸結構組合
- 獨立C型銅圈強化插拔力
- 零件可完全拆解利於回收
- 導體使用高純度銅(碲銅)並採用無鎳電鍍
Price: HKD 630.00 / 4pcs-set
Material:
Contact Pin: Tellurium Copper(#C14500 / copper contains over 99%)
Ground Pin: Tellurium Copper(#C14500 / copper contains over 99%)
C Ring: Phosphor Bronze(C5441)
Body: Glass fiber reinforced nylon (Red / White)
Shell: Stainless steel (SUS304)
Sleeve: POM
Screw: Stainless steel (SUS304)
Finish:
ARP-1512G
Contact Pin: 10u" Gold plating (no nickel base)
Ground Pin: 10u" Gold plating (no nickel base)
ARP-1512S
Contact Pin: 120u" Silver plating (no nickel base)
Ground Pin: 120u" Silver plating (no nickel base)
ARP-1512R
Contact Pin: Rhodium plating (no nickel base)
Ground Pin: Rhodium plating (no nickel base)
C Ring: none
Body: none
Shell: none/ laser engraving
Sleeve: none
Screw: none
Electrical Characteristics:
Contact resistance < 0.3 mOhm (It was test by ARJ-4045.)
Dimension:
Biggest OD 13.9mm
Cable hole
Sleeve is contained in finished product 9.0mm.
Sleeve is not contained in finished product 11.5mm.
Total Length 45.7mm
