BlieSma

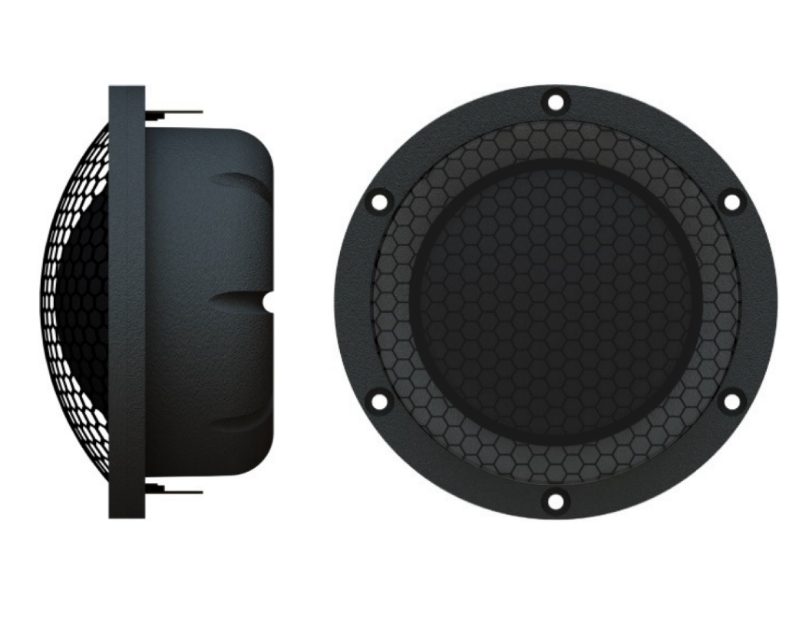

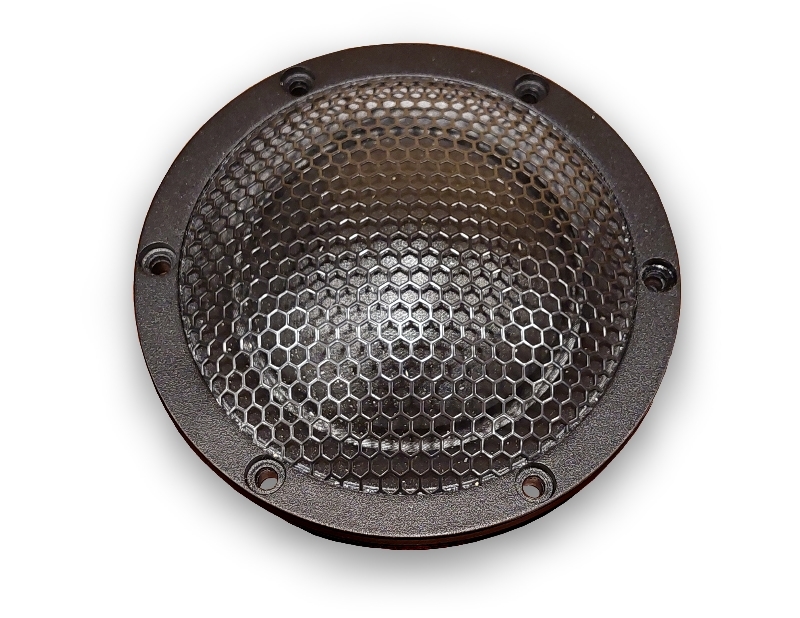

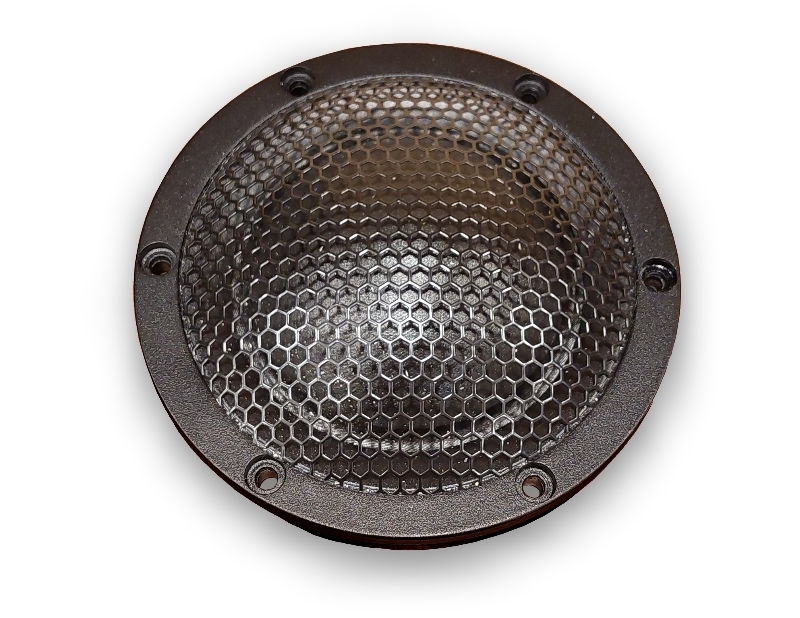

M74S-6 (絲膜中音)

74mm Silk Dome Midrange 絲膜中音



Features :

  • 74mm silk dome with integrated surround
  • Extremely low moving mass for better transient response and higher efficiency
  • Fully saturated neodymium motor with copper sleeve for low non linear and modulation distortion
  • 2.4mm linear excursion and large vent channel for undistorted low frequency operation
  • No ferrofluid for improved dynamics
  • Textile surround covered by faceplate with moderate horn loading for flat frequency response and wide off-axis response
  • Single-layer ribbon CCAW voice coil for lower inductance
  • Underhung voice coil wound on titanium former
  • Flexible and lightweight lead wires made in Denmark
  • Thick aluminium powder coated flange
  • Aluminium rear chamber with natural wool damping
  • Gold plated wire terminals
  • Recommended frequency range 425Hz-4.5kHz



Made In Germany 德國製造



Price: HKD 6,980.00 / pair 對

View All BlieSma Products

Specifications :

Sensitivity (2.83V/1M) : 97dB

Nominal Impadance : 6 ohm

Recommended frequency range : 425Hz - 4.5kHz

Resonance frequency [fs] : 425Hz

Nominal power handling RMS : N/A

Magnet type : Neodymium motor system with copper sleeve

Net weight : 0.68 kg
