SPEAKER DRIVERS 喇叭單元
BlieSma

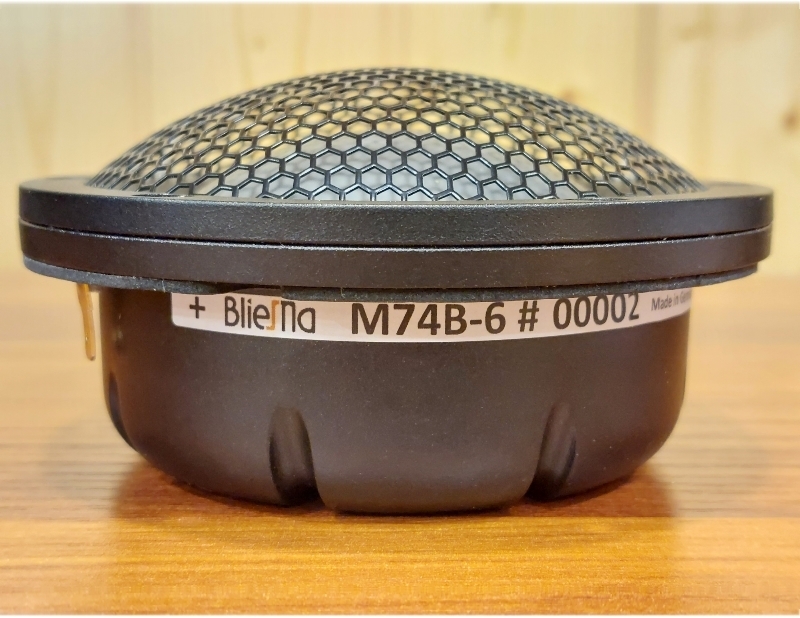

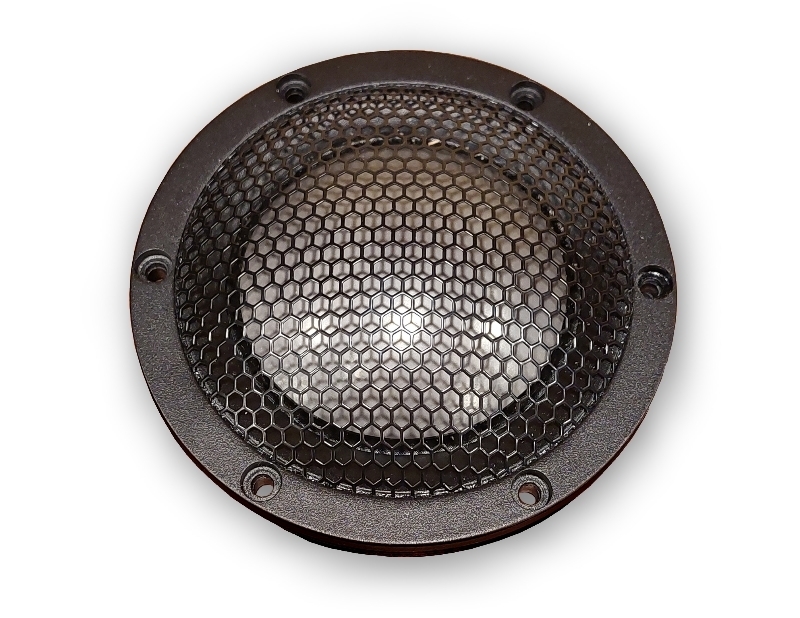

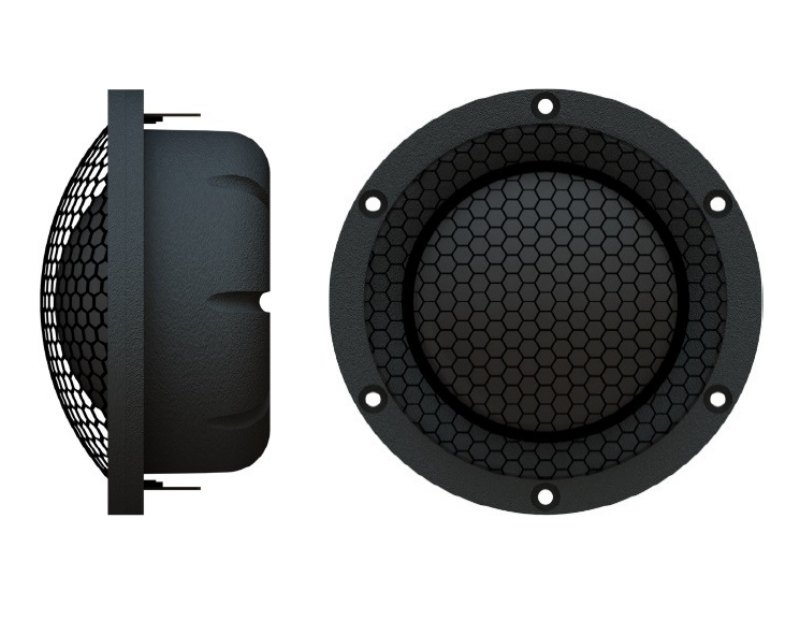

M74B-6 (鈹膜中音)

74mm Beryllium Dome Midrange 鈹膜中音



Features :

  • 74mm Beryllium dome for wide bandwidth and low non liner distortion
  • Extremely low moving mass for better transient response and higher efficiency
  • Fully saturated neodymium motor with copper sleeve for low non linear and modulation distortion
  • 2.4mm linear excursion and large vent channel for undistorted low frequency operation
  • No ferrofluid for improved dynamics
  • Textile surround covered by faceplate with moderate horn loading for flat frequency response and wide off-axis response
  • Single-layer ribbon CCAW voice coil for lower inductance
  • Underhung voice coil wound on titanium former
  • Flexible and lightweight lead wires made in Denmark
  • Thick aluminium powder coated flange
  • Aluminium rear chamber with natural wool damping
  • Gold plated wire terminals
  • Recommended frequency range 440Hz-8kHz



Made In Germany 德國製造



Price: HKD 11,600.00 / pair 對

View All BlieSma Products

Specifications :

Sensitivity (2.83V/1M) : 97dB

Nominal Impadance : 6 ohm

Recommended frequency range : 440Hz - 8kHz

Resonance frequency [fs] : 440Hz

Nominal power handling RMS : N/A

Magnet type : Neodymium motor system with copper sleeve

Net weight : 0.68 kg

DOCUMENT DOWNLOAD
M74B-6_Spec
