設計概念
為了在射頻場中實現最佳傳輸效果（VSWR接近1），我們需確保連接器和電纜之間的對應關係。
例如，日本規格（4C，5C）或美國規格（RG-59，RG-6U）和其他規格和阻抗，您必須為連接器和電纜選擇相同的規格和阻抗。
規範的定義是在組裝後各斷面保持固定百分比的截面導體和絕緣直徑比。
如果電纜規格不明的狀況下，會產生沒有相應連接器的情況。
在這種情況下，ABC-14系列將提出一個解決方案。
在指定的電纜尺寸範圍內，它將允許電纜在完成組裝後保持固定百分比的截面導體和絕緣直徑比，進而實現最佳的傳輸效果。
可採焊接或免焊(夾持)方式連接導體
主次中心針以及搭配多種次中心針的方式，除了擴展相容性，也增加電纜與連接器的適配性，次中心針的剖溝與縮口設計，可選擇焊接或以夾持方式連接電纜中心導體與連接器中心針。
中心導體材質使用高純度銅(鈹銅)並採用無鎳電鍍, 以最高質量的設計手法與材質應用提供給對Hi-End需求的消費者。
Concept
In order to achieve the best transmission effect (VSWR approaches 1) in RF fields, we will concentrate the specifications for the correspondence between connectors and cables.
For example, the Japan specification (4C, 5C) or US specification (RG-59, RG-6U) and other specification and impedance, You must choose the same specification and impedance for the connectors and cables.
The definition of the specifications is to maintain a regular percentage of the section conductor and insulation diameter ratio connection after assembly.
In case of the unclear specification of the cable, it will cause there no corresponding connector.
Under these circumstances, ABC-14 will be proposed a solution on it.
In a specified size range for the cables, it will allow cables to maintain a regular percentage of the section conductor and insulation diameter ratio after complete assembly and also achieve the best transmission effect.
It’s allow to connect conductor by solder or crimp
The method of main contact pin to suit several secondary contact pin;
Not only to extend the compatibility, also increase the suitable ability of cable and connectors.
Secondary contact pin’s cross cutting and shrink design.Which is able to choose the solder or crimp method to connect the contact cable conductor with contact pin of the connector.
The conduct material is made by high pure copper (Tellurium copper) and plated without nickel base. Focus provide the client who has requirement of Hi-End by highest quality design and material.

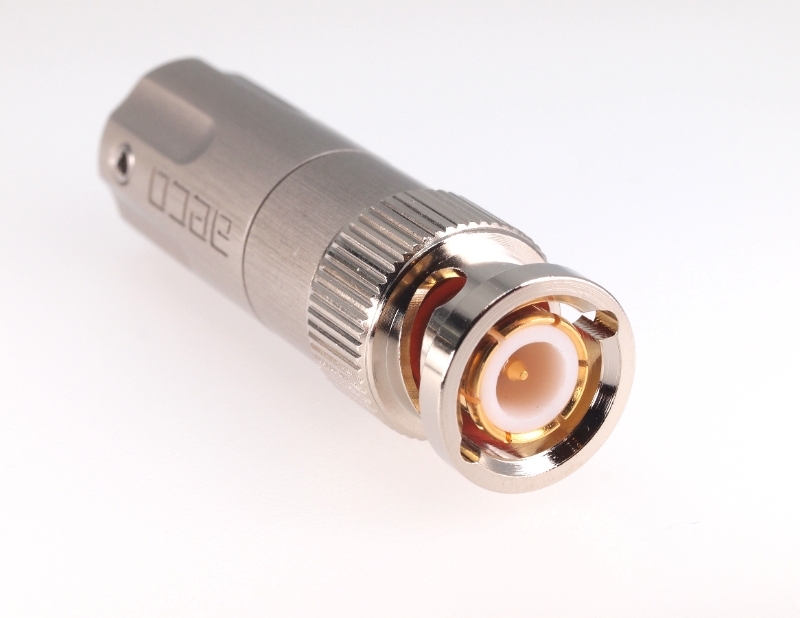

產品說明
- 本體與絕緣以倒鉤卡榫緊密配合, 並與中段外殼採沖壓鉚合方式固定

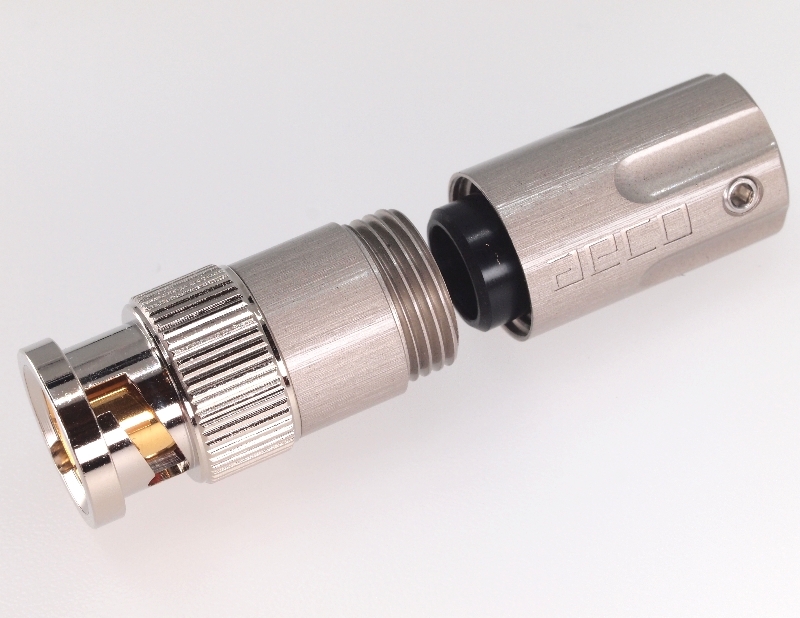

- 前外殼透過彈片與華司組鉚固於本體並可獨立旋轉, 後段外殼與中段外殼以螺紋配合鎖固, 再透過螺絲將尾套及線纜鎖固
注意事項：
本產品隨包檢附

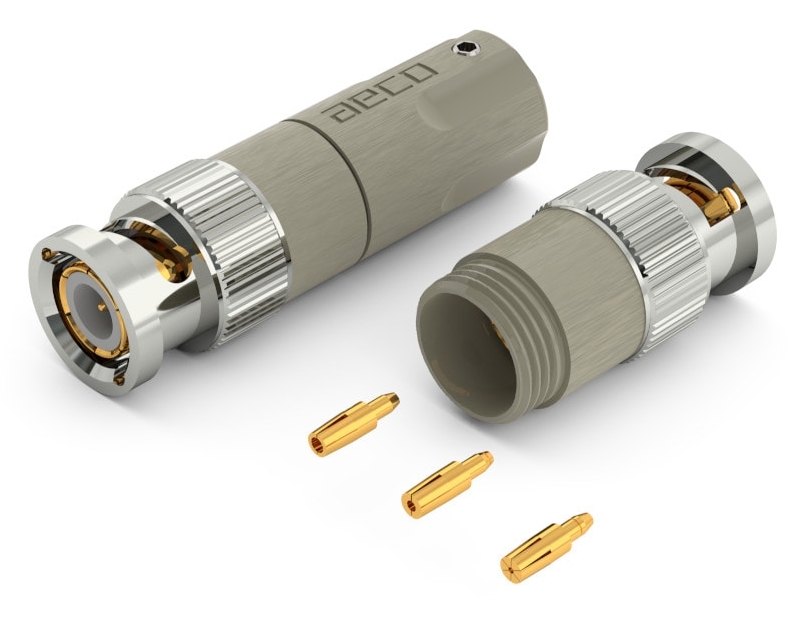

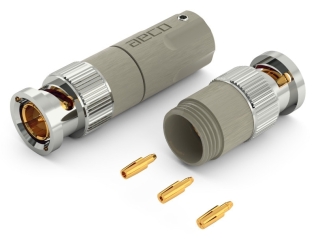

次中心針(內徑1.3/0.9/0.5mm各貳個), 鎖線螺絲(3/4mm各貳個)
組裝：

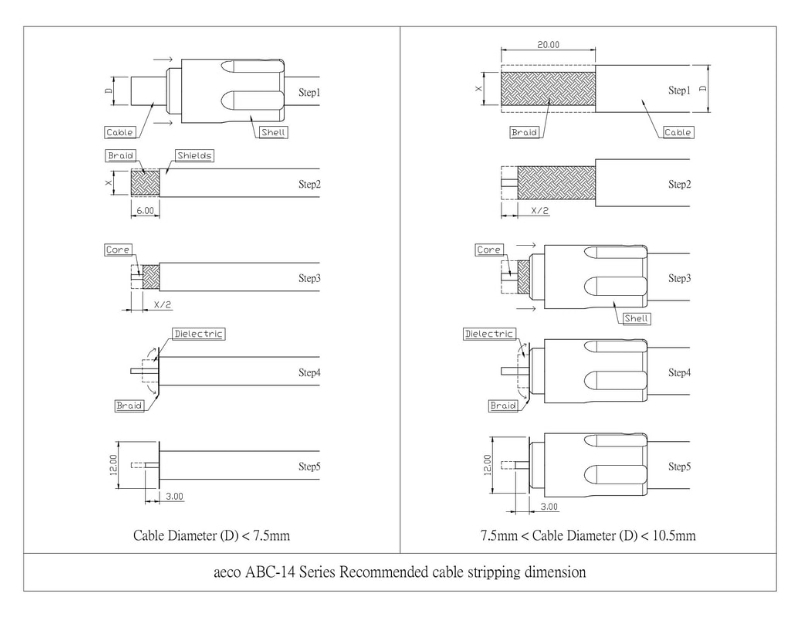

1.電纜剝線
1.1.電纜外徑小於7.5mm時
Step01 - 將後段外殼[301]套入電纜，視實際電纜外徑移除尾套[311/312]
Step02 - 將電纜外被剝除約6.0mm
Step03 - 將電纜編織網及絕緣移除(X-2)mm，X為含編織網之電纜外徑
Step04 - 將編織網以放射方向梳理，與中心導體成垂直方向平均發散， 發散圓直徑約為12.0mm。再沿編織網發散面移除鋁箔層及絕緣層
Step05 - 確保電纜中心導體突出編織網發散面3.0mm
Step01 - 將電纜外被剝除約20.0mm
Step02 - 將電纜編織網及絕緣移除(X-2)mm，X為含編織網之電纜外徑
Step03 - 將後段外殼[301]套入電纜，視實際電纜外徑移除尾套[311/312]
Step04 - 將編織網以放射方向梳理，與中心導體成垂直方向平均發散，發散圓直徑約為12.0mm。再沿編織網發散面移除鋁箔層及絕緣層
Step05 - 確保電纜中心導體突出編織網發散面3.0mm
2.1.依包裝檢附的次中心針[201/202/203]選擇適當內徑尺寸
次壹中心針[201]內徑縮口後為1.3mm
次貳中心針[202]內徑縮口後為0.9mm
次參中心針[203]內徑縮口後為0.5mm
2.2.以切削或磨損方式，將電纜中心導體端面進行導角修飾
2.2.1.夾持(免焊接)
以工具輔助夾持次中心針，將次中心針縮口推入電纜中心導體
2.2.2.焊接
以工具輔助夾持次中心針，將次中心針與電纜中心導體焊接
3.將次中心針及電纜組置入中段外殼[100]內主中心針縮口端
4.確定編織網充分放射發散，後將後段外殼[301]鎖入中段外殼
5.將螺絲[321/322]自後段外殼鎖入以鎖固電纜

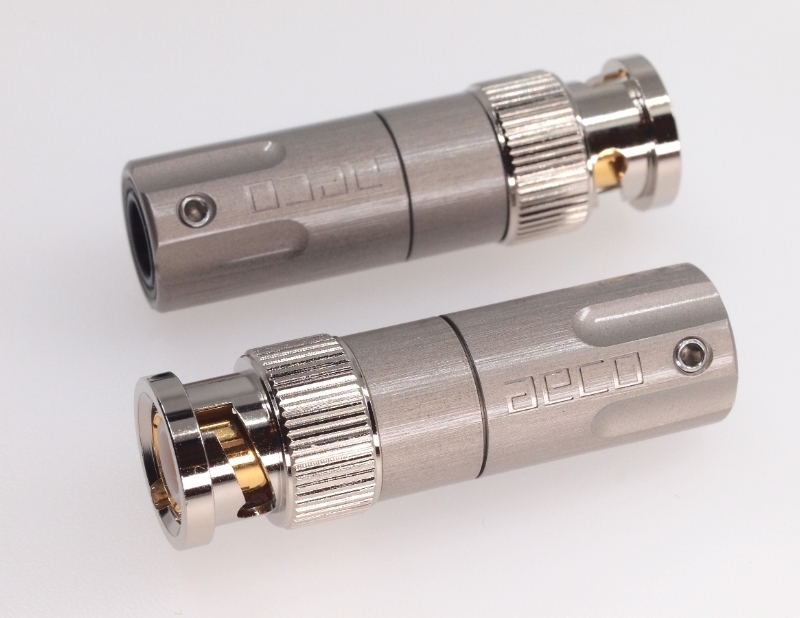

Description :
- Main contact pin uses the barb hook into the insulation while assemble.
- Secondary contact pin fixed with main contact pin while assemble cables by crimp method.
- The body and the insulation will used the barb hook to assemble tighten,
and fix middle piece shell with punch riveting.
- The front shell rivet on the body by spring and washer and it can spin independently.

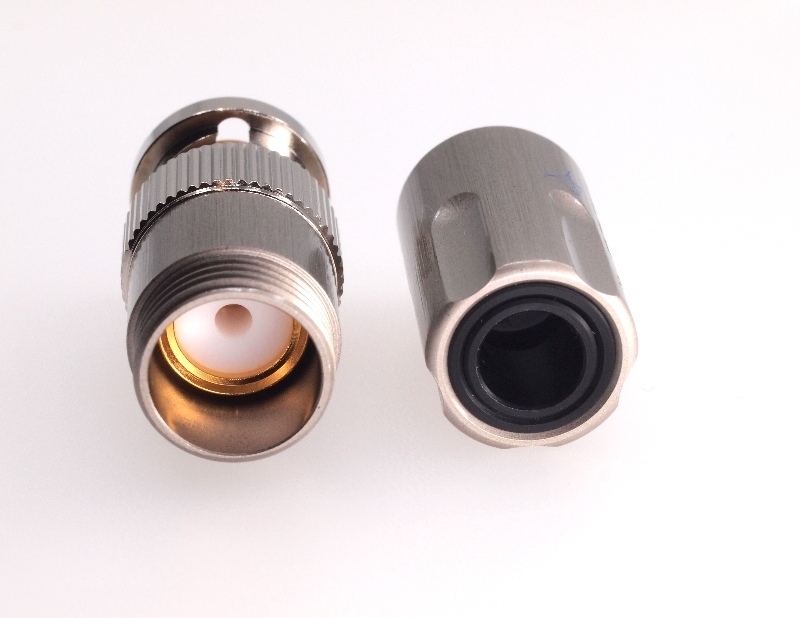

- The end part and middle part of the shell locked by screwing,
and fix with the cable and the sleeve stable by a screw.
Note:
The second contact pin (ID 1.3/0.9/0.5 MM 2 pcs each)
and screw (3/4MM 2 pcs each) which is for locking cable
all including in the pack
Assemble:
1.Peel cable
1.1.the cable OD < 7.5mm:
Step01 - Place shell’s back part<301> in the cable, and removed the sleeve<311/312> depends on the actual cable OD size.
Step02 - Peel the shields about 6.0 mm.
Step03 - Move out the cable braid and dielectric(X-2)mm, X is the cable OD which include the braids.
Step04 - To comb the braids by radial direction, and spread it out with core in vertical direction. And the spread out Round diameter is about 12.0mm. Move out the aluminum foil and dielectric along the braids spread area.
Step05 - Make sure the cable core is exposed 3.0mm than braids spread area.
1.2.the cable OD >7.5mm but <10.5mm:
Step01 - Peel the shields about 20.0 mm
Step02 - Move out the cable braid and dielectric(X-2)mm, X is the cable OD which include the braids.
Step03 - Place shell’s back part<301> in the cable, and removed the sleeve<311/312> depends on the actual cable OD size.
Step04 - To comb the braids by radial direction, and spread it out with core in vertical direction. And the spread out Round diameter is about 12.0mm. Move out the aluminum foil and dielectric along the braids spread area.
Step05 - Make sure the cable core is exposed 3.0mm than braids spread area.
Material 材質:
Contact Pin 中心針 : beryllium Copper 鈹銅
Body 本體 : Brass Zinc alloy 銅鋅合金
Spring 彈片 : Steel 鋼
Washer 華司 : Steel 鋼
Shell 外殼 : Brass Zinc alloy 銅鋅合金
Screw 螺絲: Stainless Steel 不銹鋼
Finish 表面處理 :
Contact Pin 中心針 : 10u" gold plating (no nickel base) 無鎳鍍金(10u")
Body 本體 : 10u" gold plating (no nickel base) 無鎳鍍金(10u")
Spring 彈片 : Nickel plating 鎳電鍍
Washer 華司 : Nickel plating 鎳電鍍
Shell 外殼 : Satin nickel plating + topcoat 鎳電鍍／髮絲紋處理／沙展鎳外覆保護膜／印字
Screw 螺絲 : Nature 鎳電鍍
Electrical Characteristics 電氣特性 :
ABC-1451
Impedance 阻抗 : 50 ohms
ABC-1471
Impedance 阻抗 : 75 ohms
Frequency Range 頻寬 : 1GHz
VSWR 駐波比 : up to 1.2
Contact resistance 接觸電阻 : < 0.1 mOhm
Dimension 尺寸 :
Cable hole without sleeve 外殼孔徑 : 10.5mm
Cable hole with sleeve 尾套孔徑 : 06.5/08.5mm
Biggest OD 最大外徑 : 14.5mm
Total Length 總長 : 42.0mm
The corresponding of the cable size 對應電纜尺寸 :
Center conductor 中心導體 <01.5mm
Insulation OD 絕緣外徑 >03.0mm
Woven shield OD 編織網外徑 >07.5mm
Outer plastic sheath OD 外被外徑 <10.5mm
Packing 包裝 :
Vacuum Bag(2pcs/1Set) 真空夾鏈袋(貳個/壹組)
Recommend soldering temperature 焊接溫度：
Temperature Soldering Iron, please keep 350 degree within 20 second / 400 degree within 15 second / 450 degree within 10 second
使用溫控烙鐵保持 350°C時20秒 / 400°C時15秒 / 450°C時10秒
Product production process comply with RoHS
產品製作過程符合歐盟危害性物質限制指令(RoHS)
