NOTE :

• The product is suitable with bare wire (D4.0mm), banana plug and cable terminal (6/8mm opening gap) with screw /plug in type.

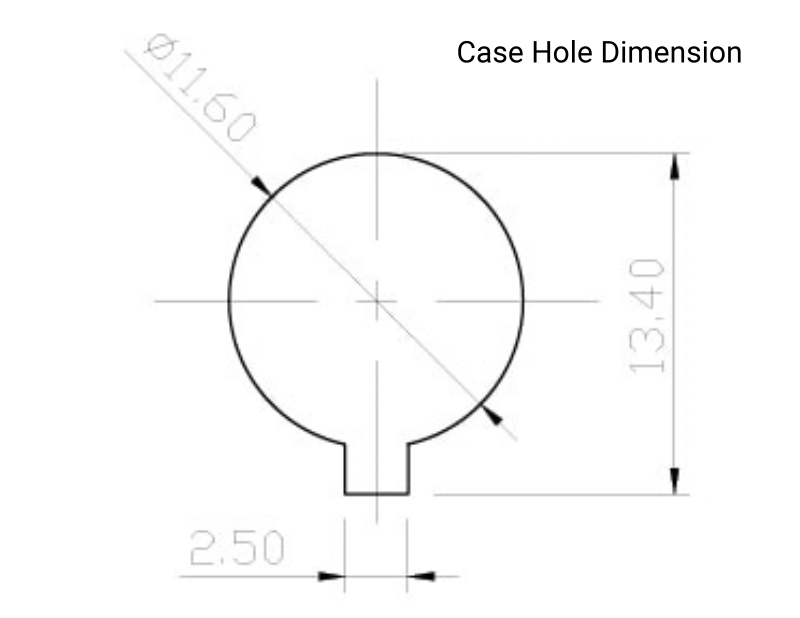

• The product is suitable for panel, for detail dimension, please refer pictures.
• The products is suitable for the maximum 10mm thickness of the panel.The torque for the nut on this product can be reach to maximum 8 (lb-in)
• The torque for the back sleeve can be reach to maximum 6 (lb-in)
• Please noted, it will cause component damage if force to lock tighten too much.

Material :
Body: Tellurium Copper (#C14500 / copper contain over 99%)
Ring: Brass
Screw: Brass
Shell: POM (Black)
Washer: PE (Red/ White)
Nut: Brass
Knobs: Brass

Finish :

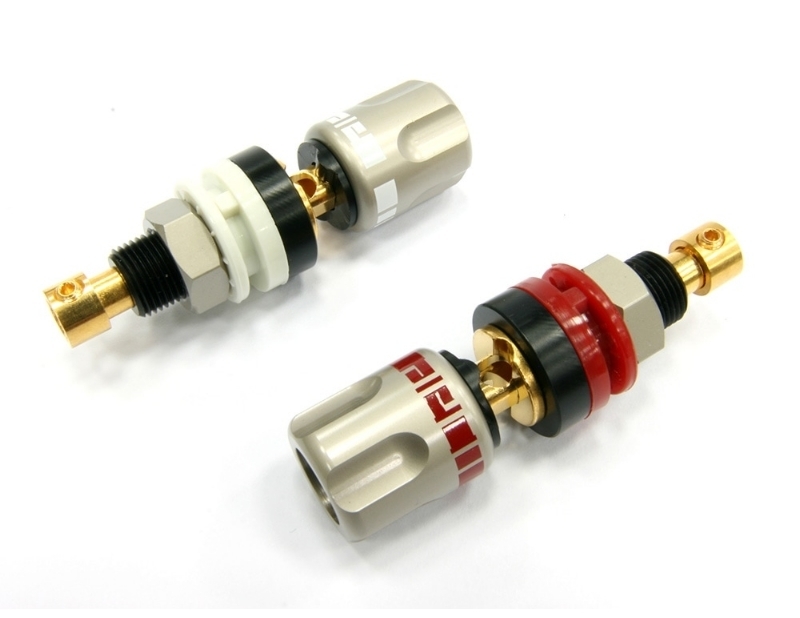

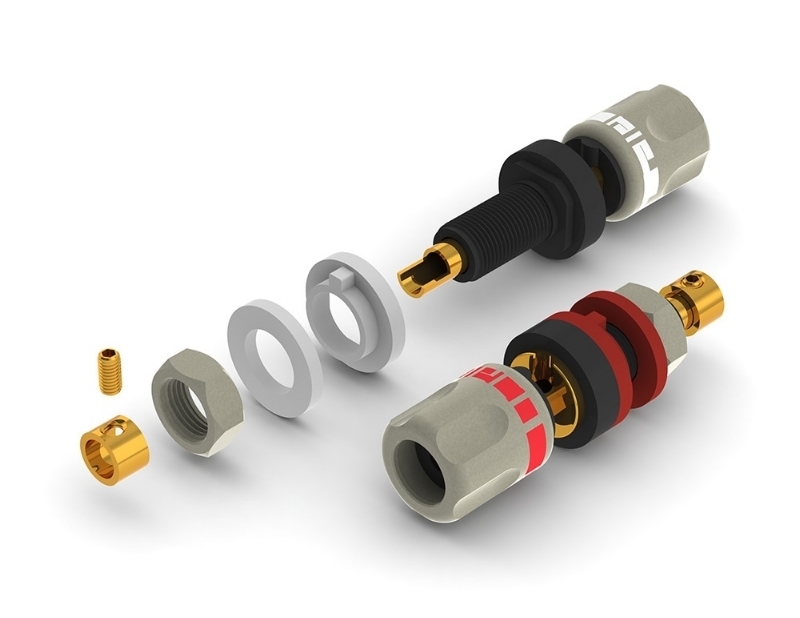

ABI-0611
Body: 10u" Gold plating ( no nickel base)
Ring: 3u" Gold plating ( no nickel base)
​Screw: 3u" Gold plating ( no nickel base)

ABI-0611R
Body: Rhodium plating (no nickel base)
Ring: 120u" Silver plating (no nickel base)
​Screw: 120u" Silver plating (no nickel base)

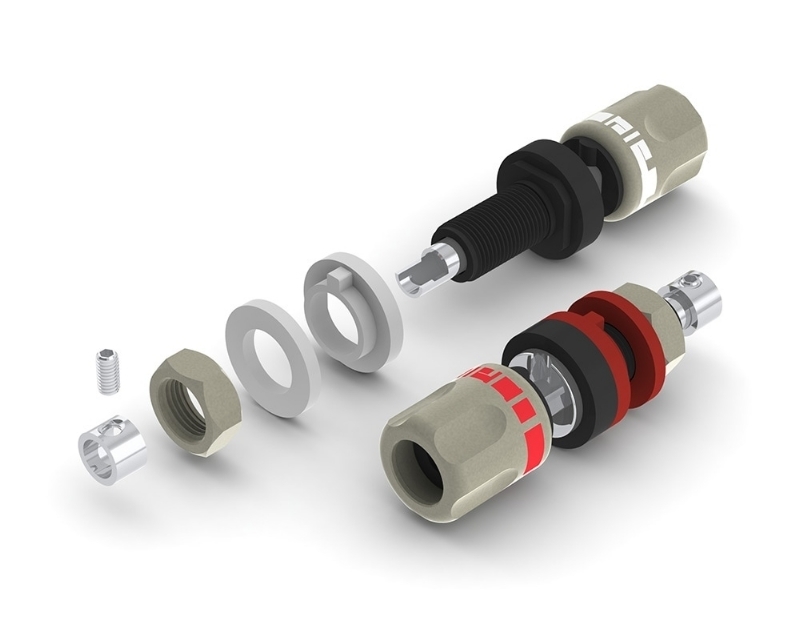

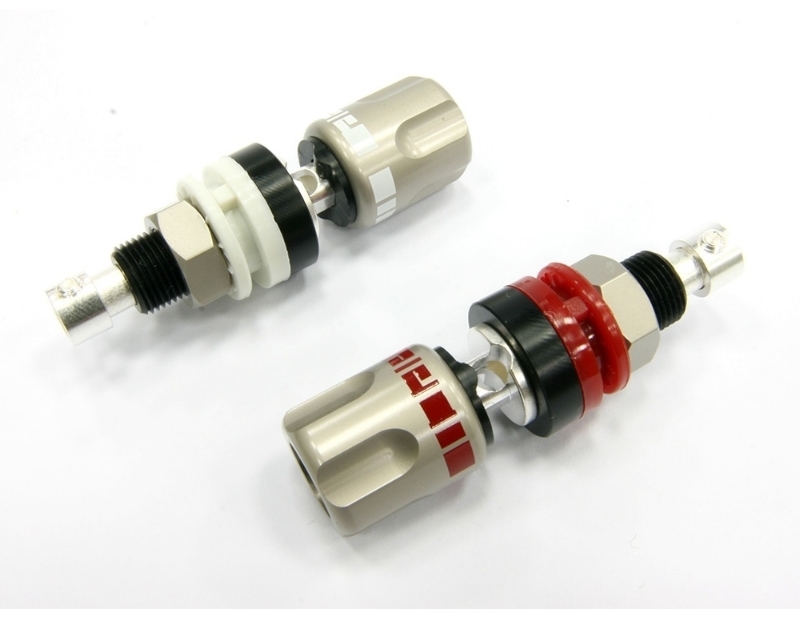

ABI-0611S
Body: 120u" Silver plating (no nickel base)
Ring: 120u" Silver plating (no nickel base)
​Screw: 120u" Silver plating (no nickel base)
​
Shell: None
Washer: None
Nut: Satin nickel + topcoat
Knobs: Satin nickel + topcoat

Electrical Characteristics :
Contact resistance < 0.2 mOhm (It was test by ABP-1111.)

Dimension :
Biggest OD: 16.5mm
Total Length: 50.0mm

Packing :
Vacuum Bag(2Pcs/1Set)
​
Recommend soldering temperature :
Temperature Soldering Iron, please keep 450 degree within 10~15 second
Temperature Soldering Iron, please keep 400 degree within 15~20 second
Temperature Soldering Iron, please keep 350 degree within 20~25 second

Product production process comply with RoHS.
