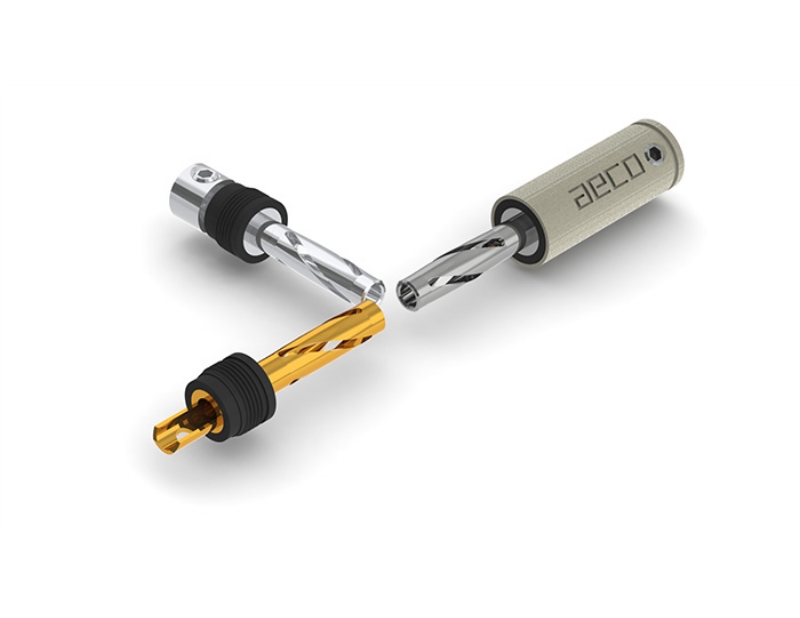

TECHNICAL HIGHLIGHTS
- The conductor is made from high-purity copper (Tellurium Copper) with 10u" Gold plating (no nickel base)
- The body of plug was lathed in one piece to avoid the signal and conduction loss
- The interface was continued with hollow design
- Spiral pattern to maintain the insertion force and will adjust the shape into a perfect size based on the binding post
- It will be used for solder type or screw type
- The cable hole can be adjusted to 4.5mm or 6.5mm through the POM sleeve
- Hair-line surface treatment show the high quality of design techniques

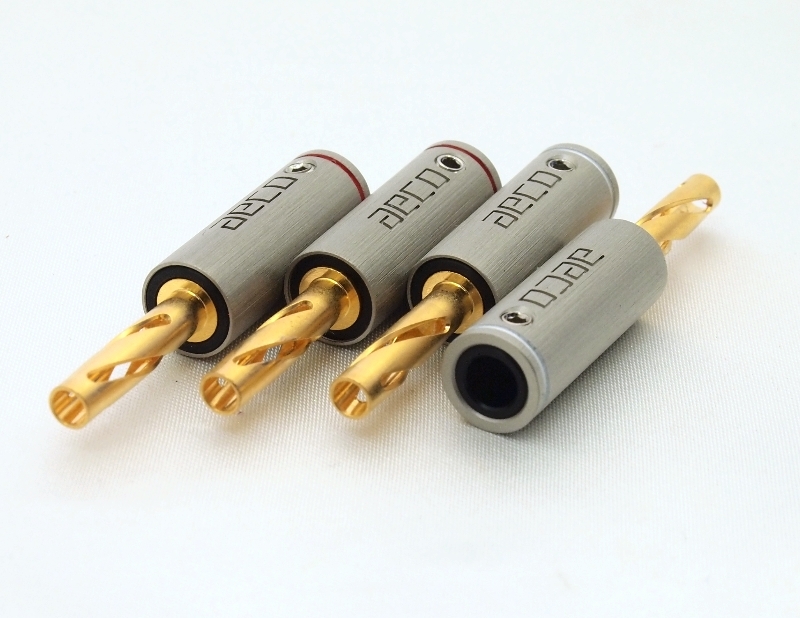

Price: HKD 780.00 / 4pcs-set
NOTE:
- This product is only suitable for 4.0mm binding post.(Not for 4.1mm)
- Please insert with clockwise while put the banana plug in the binding post first time.
- The interface will adjust the shape due to binding post size and cause it into a perfect size

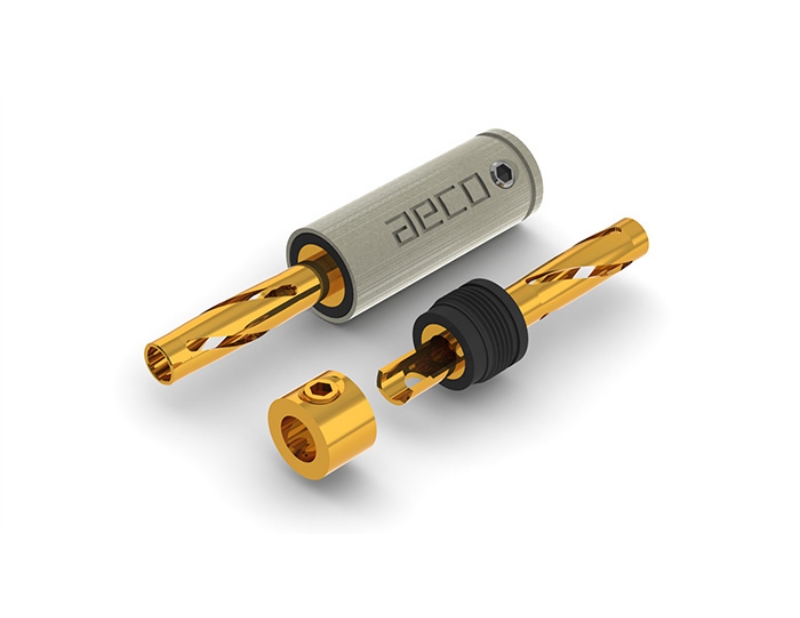

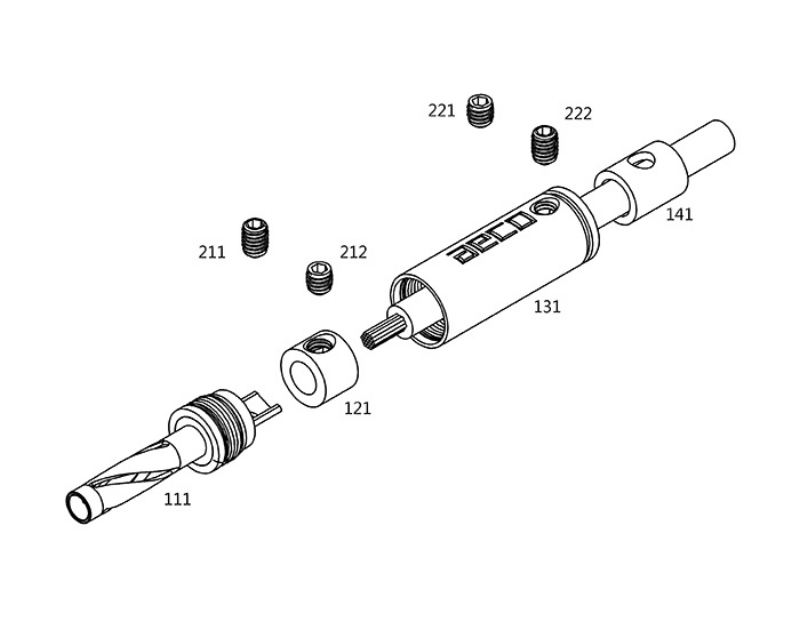

Material :
Body: Tellurium Copper (#C14500 / copper contains over 99%)
Head lock: POM
Ring: Brass alloy (#C3604)
Shell: Brass alloy (#C3604)
Screw for conductor: Brass alloy (#C3604)
Screw for cable: Iron
Finish :

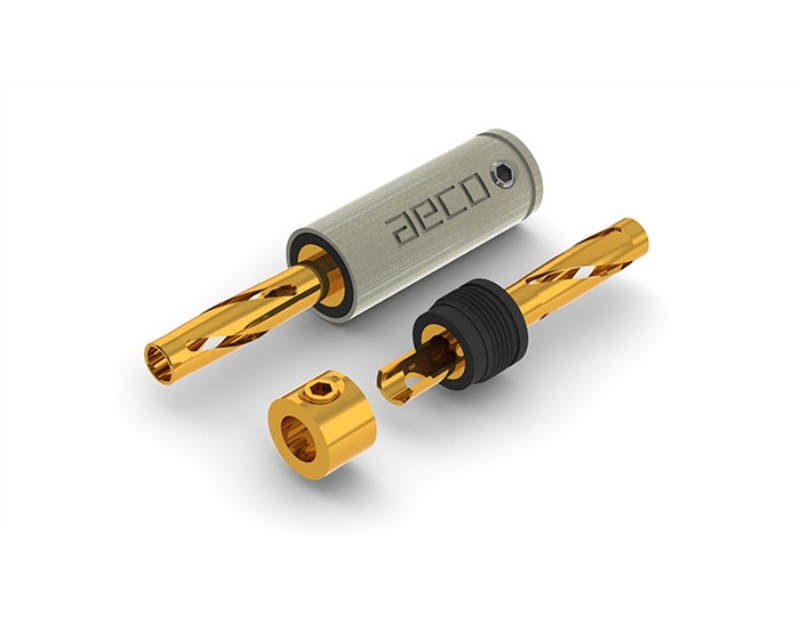

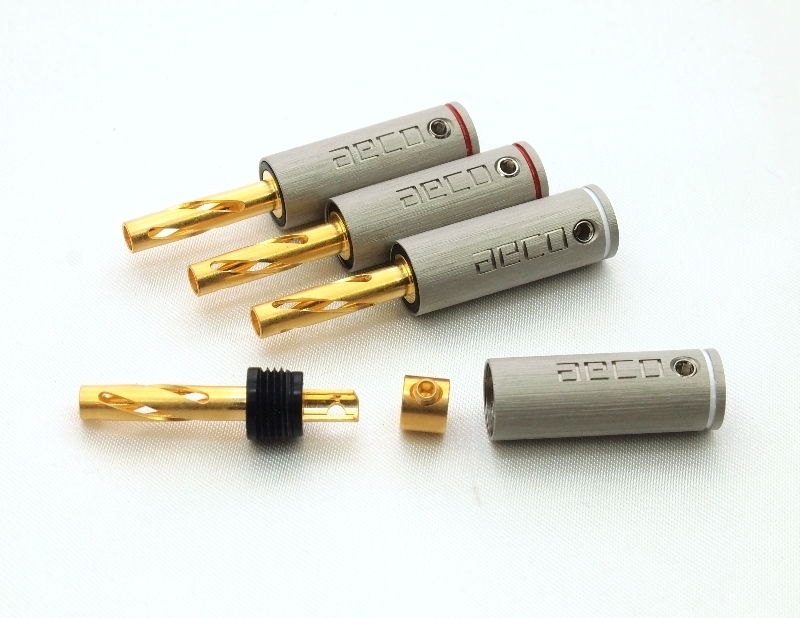

ABP-1111
Body: 10u" Gold plating (no nickel base)
Ring: 3u" Gold plating (no nickel base)
Screw for conductor: 3u" Gold plating (no nickel base)
ABP-1111S
Body: 120u" Silver plating (no nickel base)
Ring: 120u" Silver plating (no nickel base)
Screw for conductor: 3u" Gold plating (no nickel base)
ABP-1111R
Body: Rhodium plating (no nickel base)
Ring: 120u" Silver plating (no nickel base)
Screw for conductor: 3u" Gold plating (no nickel base)
Shell: Satin nickel plating with hairline surface treatment
Screw: Nickel plating
Electrical Characteristics :
Contact resistance < 0.3 mOhm (It was test by ABI-0601.)
Dimension :
Biggest OD 9.0mm
Cable hole without sleeve 6.5mm
Cable hole with sleeve 4.5mm
Total Length 43.0mm
Packing :
Vacuum Bag(4Pcs/1Set)
Recommend soldering temperature :
Temperature Soldering Iron, please keep 400 degree within 8~10 second.
Temperature Soldering Iron, please keep 450 degree within 8~10 second.
Please shore up the body by solder equipment to avoid the high temperature caused the POM lock head deformed.
Product production process comply with RoHS.
Product made new TW patent No. M521314.
