MOREL

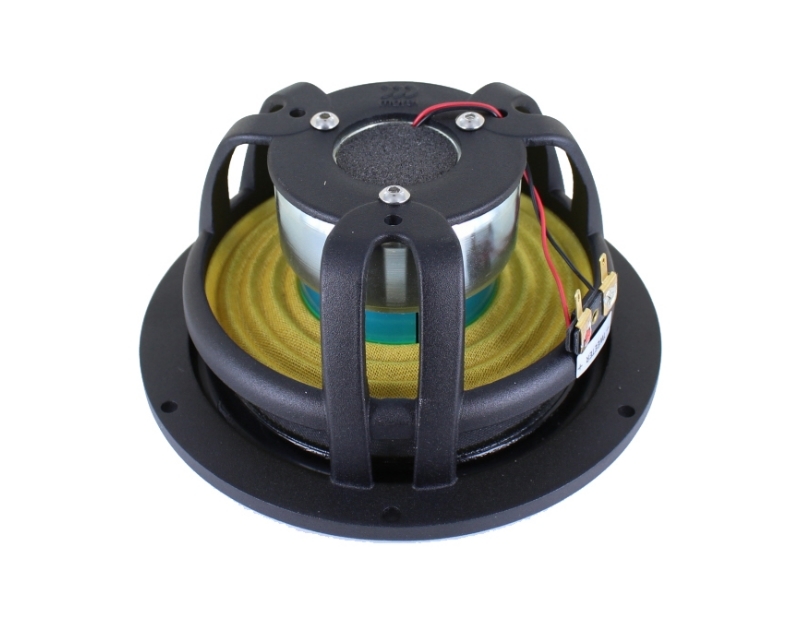

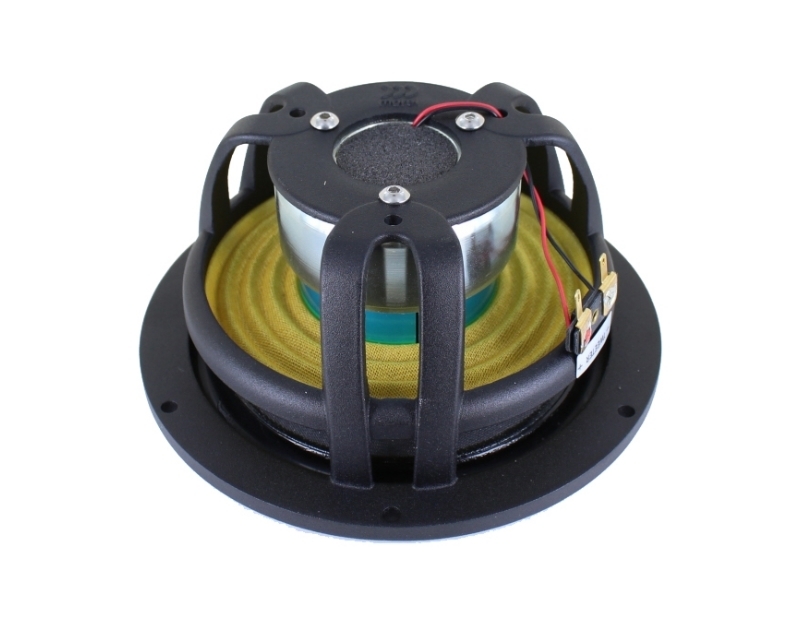

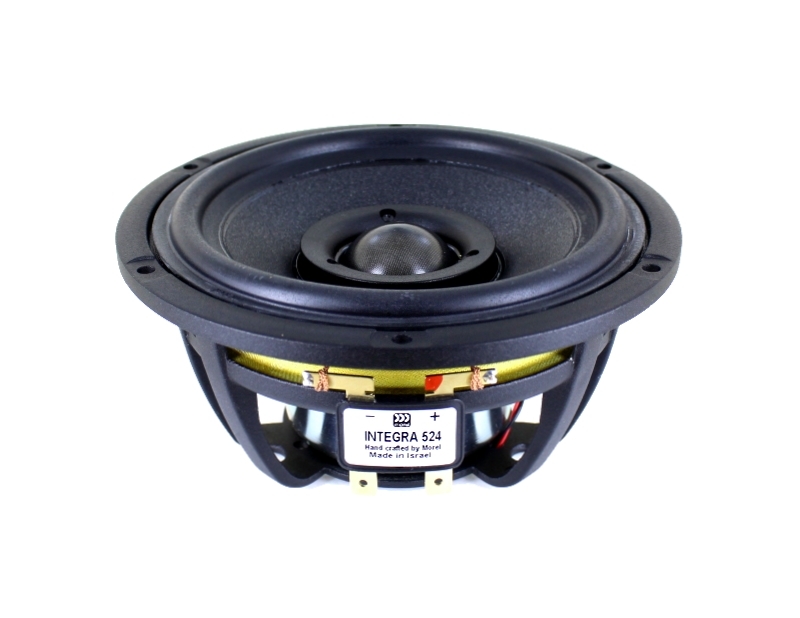

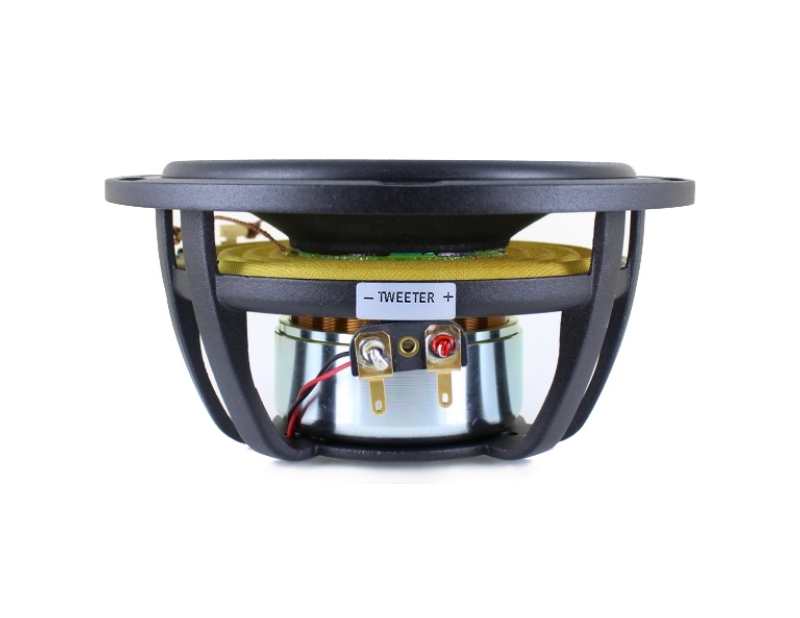

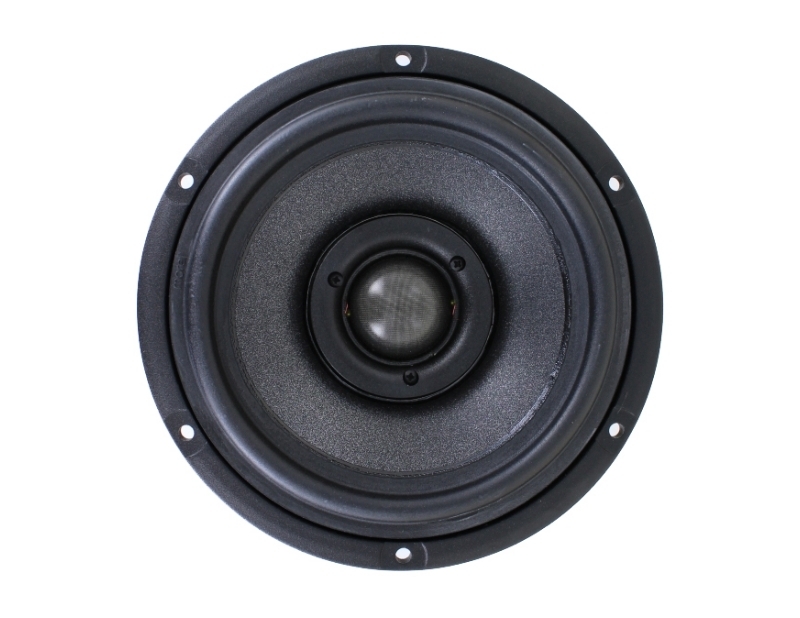

INTEGRA 524
INTEGRA Line
1.1" SOFT DOME TWEETER / 5" COMPOSITE PAPER CONE WOOFER
- Acuflex™ Hand Coated Soft Dome
- 2.1″ Large Hexatech™ Aluminum Voice Coil
- Hybrid™ Neodymium/Ferrite magnet
- Time aligned tweeter-woofer configuration
- High power handling
- Uniflow™ Aluminum die-cast chassis
Price: HKD 2,280.00 / pc
Tweeter
Sensitivity (2.83V/1M) : 89dB
Nominal Impadance [Z] : 4 ohm
Frequency response : See graph
Resonance frequency [fs] : 1083 Hz
Nominal power handling RMS : 80W
Magnet type : Hybrid™ Neodymium/Ferrite
Woofer
Sensitivity (2.83V/1M) : 90.4dB
Nominal Impadance [Z] : 4 ohm
DC Resistance [Re] : 3.63 ohm
Frequency response : See graph
Resonance frequency [fs] : 62 Hz
Mechanical Q Factor [Qms] : 1.65
Electrical Q Factor [Qes] : 0.36
Total Q Factor [Qts] : 0.29
Eq. Cas Air Load [VAS] : 12.93 Lt
Effective Piston Area [SD] : 97 cm ²
Nominal power handling RMS : 80W
Cone material : Composite Paper
Magnet type : Hybrid™ Neodymium/Ferrite
DOCUMENT DOWNLOAD
Integra 524-Datasheet
